Index / product / SeatPost / SeatClamp / SeatPost

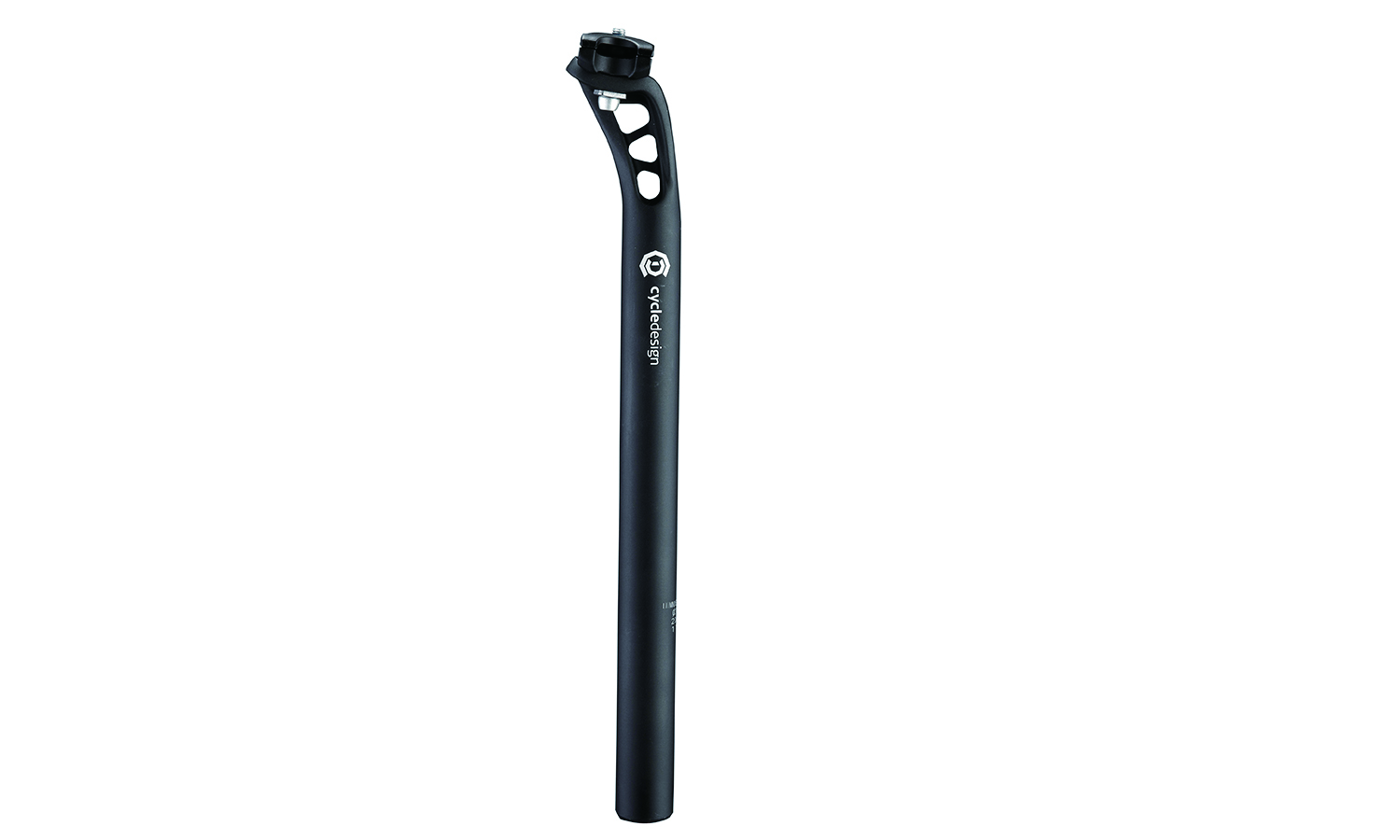

SCALE 3DF-SP16. SeatPost-CDSP0005
  • CDSP0005
  • CDSP0005
The cycledesign SCALE 3DF-SP16. SeatPost has a ClipPlate with dual-bolt lock design,

built with 3D-Forged structure to provide great durability and lightweight aluminum

material, and certified for ISO-4210.


Constructed of heat treated 6061-T6 aluminum and precision mechanism processed

construction, high-strength and high impact resistance to create the strongest, lightest

and deformation resistance.


Featuring from integrated seamless processes technology, the hollow design in head

with 16mm offset and both plate lock and slip the clamping plate for easy installation

of the saddle, and included bolts with Loctite applied on the threads.






Material : Aluminum

Diameter :
ø27.2 mm

Length : 350 mm

Offset : 16 mm

Weight : 270 g


Tow-bolt with Loctite applied on the threads

Finish : SandBlasted Anodized Black

Feature : cycledesign graphic / Made In Taiwan


 Made of 3D-Forged aluminum structure is ultra-light to work sturdy and durable

 16mm offset and both plate lock desig

 All metal hardware is reliable and tough

 Certified for ISO-4210



Available Size :
